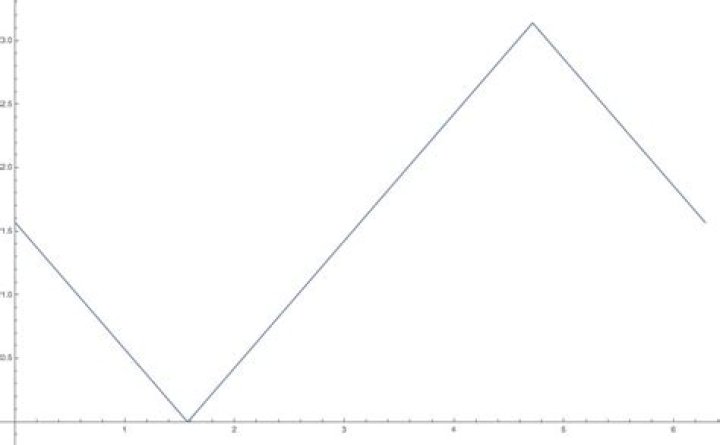

Why does Arccos(Sin(x)) look like this??
I can kind of understand the main direction (slope) of $y$ over the different $x$ intervals, but I can't figure out why the values of $y$ take on the shape of straight lines and not curves looking more like those of sin, cos...
EDIT: I understand that the derivative of Arccos(Sin(x)) gives 1 or -1 depending on the x interval, but it doesn't give me intuition into why that's the case.
$\endgroup$ 33 Answers
$\begingroup$Well, to think about the equation $$y=\arccos(\sin(x))$$ let's first look at an easier one, obtained by taking the cosine of both sides (noting that $\cos(\arccos(x))=x$ - that is $\arccos$ is a right-inverse of $\cos$): $$\cos(y)=\sin(x).$$ If we plot this, we get the following graph:
$\hskip1.5in$
which is just a series of diagonal lines going in two directions. This mystery unfolds when we rewrite $$\cos(y)=\cos\left(x+\frac{\pi}2\right)$$ and note that, from symmetries and periodicity, we have that $\cos(u)=\cos(v)$ whenever $u=2\pi k \pm v$ for some integer $k$. This gives us that there is a line $y=x+\frac{\pi}2$ included as well as the line $y=x-\frac{\pi}2$ and any shift of these horizontally (or vertically) by $2\pi$, giving rise to the lattice pattern.
However, the definition of $\arccos$ that you are using seems to mandate that its output falls in the interval $[0,\pi]$, hence $y$ must be in there. If we highlight the suitable range of $y$ in gray and trace the lines it covers in red, we recover the pattern you observed:
$\hskip1.5in$
which makes it clear that the alternation is merely a small part of a larger pattern, than can't be fully represented due to the fact that $\arccos$ is limited in its range.
$\endgroup$ 1 $\begingroup$The inverse of the cosine is defined on $[-1, 1]$ and maps to $[0, \pi]$.
The sine function on $[-\pi/2, \pi/2]$ maps to $[-1,1]$.
$$
\arccos(\sin(x))
= \arccos(\cos(\pi/2 - x))
= -x + \pi/2
$$
The sine funcion on $[\pi/2, \pi/2 + \pi]$ is
$$
\sin(x) = -\sin(x-\pi) = \sin(\pi - x)
$$
and maps to $[-1,1]$. We get
$$
\arccos(\sin(x)) = \arccos(\cos(\pi/2 - (\pi -x)) = x - \pi/2
$$
In both cases we can add integer multiples of $2\pi$ to the argument to the cosine function. This gives
$$ \arccos(\sin(x)) = \begin{cases} -x + \pi/2 + 2\pi k & \text{for } x \in [-\pi+2\pi k, \pi/2 + 2\pi k] \\ x - \pi/2 + 2\pi k & \text{for } x \in [\pi/2+2\pi k, \pi/2 + \pi + 2\pi k] \\ \end{cases} $$ where $k \in \mathbb{Z}$.
Note that $$cos(x-\pi)=sin(x)$$ $$x-\pi=arccos(sin(x))$$ $$and$$ $$cos(x)=cos(x\pm 2n\pi), n=0,1,2,3,...$$
You get solutions between $\pi$ and $0$ because of the $arccos$. This explains why your solution is linear with a slope of one.
ALSO: $$cos(x)=cos(-x)$$
This means that your solution is positive and negative. Combining all of this results in $$arccos(sin(x))=\pm(x-\pi\pm2n\pi)$$ $$=x\pm(2n-1)\pi,-x\pm(2n-1)\pi$$
$\endgroup$
